Precision Safety Sensor Repair & Alignment in Windsor-Essex, ON
Laser alignment, wiring diagnostics, and sensor replacements to fix 10-blink opener codes and restore UL 325 auto-reverse compliance.

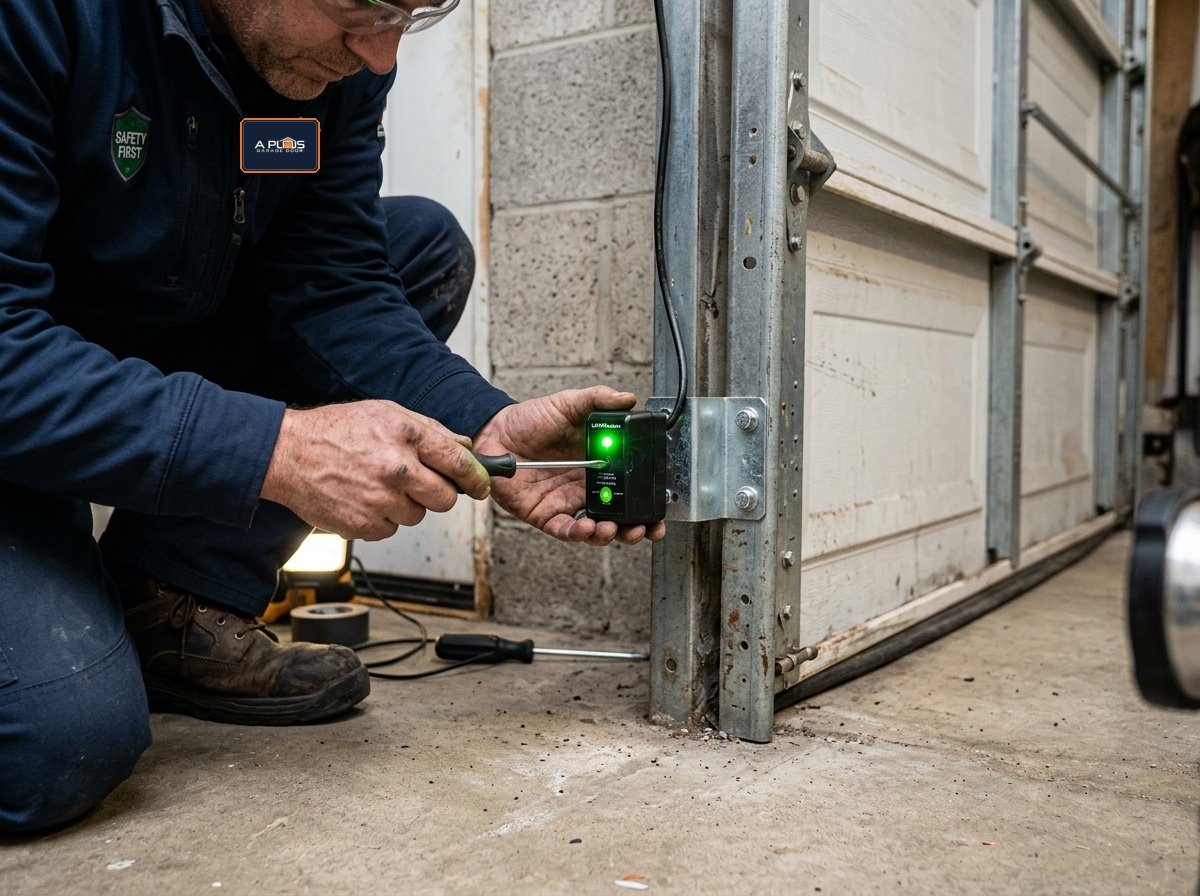

Garage door safety sensor alignment diagnoses and fixes infrared photo-eyes that prevent the door from closing. A Plus Garage Door resolves 10-blink opener error codes, cut wires, and misaligned photo-eyes across Windsor-Essex, guaranteeing full UL 325 auto-reverse safety compliance with same-day service and free upfront written estimates.
Key Takeaways & Diagnostic Facts:
- The 10-Blink Error Code: An overhead opener light blinking 10 times signals an obstructed or misaligned photo-eye beam.
- UL 325 Federal Safety Standard: Requires functional auto-reverse photo-eyes 6 inches above floor level to protect people and pets.
- Anti-Vibration Mounting Brackets: Heavy-duty steel brackets prevent loose sensors from vibrating out of optical alignment.
- Low-Voltage Wiring Diagnosis: Testing for chewed wires, staples piercing insulation, and sensor corrosion.
About Our Safety Sensor Repair & Alignment
Under UL 325 safety standards, every automated garage door opener installed in North America must be equipped with functional infrared safety photo-eyes. Mounted approximately 6 inches above the garage floor on either side of the door, these sensors project an invisible beam across the opening. If an object, pet, or child breaks this beam while the door is closing, the opener instantly stops and reverses to prevent entrapment or crush injuries. When safety sensors get knocked out of alignment, suffer wire cuts, or become blinded by sunlight, your opener will refuse to close with remotes, flashing its overhead lights 10 times. A Plus Garage Door provides same-day safety sensor diagnostics, optical alignment, and replacements across Windsor and Essex County.
Overhead Door Diagnostic Matrix
Match your garage door's physical symptoms with probable mechanical causes, urgency level, and certified field resolutions:
| Observed Symptom | Probable Root Cause | Urgency Level | Professional Resolution |
|---|---|---|---|
| Door Starts Closing, Stops, and Reverses Back Up | Infrared safety beam broken, dirty optical lenses, or sunlight blinding sensor | Safety Critical | Optical laser alignment, sun-shield adjustment, and lens cleaning |
| Opener Light Blinks 10 Times and Won't Close with Remote | Photo-eye sensor circuit open or misaligned (must hold wall button to close) | High Priority | Sensor recalibration, continuity test, or photo-eye pair replacement |
| One Sensor LED Is Green While the Other Is Amber or Off | Receiving sensor is not picking up sending sensor's infrared beam | Moderate | Precision vertical and horizontal realignment until both LEDs illuminate solid |
Southwestern Ontario Weather & Climate Factor:
Snow drifts, autumn leaves, and road salt moisture can block or corrode low-voltage sensor connections. We install weather-resistant insulated wiring and anti-vibration brackets to ensure reliable operation through all Ontario seasons.
Certified Diagnostic & Service Protocol
How A Plus Garage Door technicians safely isolate hazards and execute safety sensor repair & alignment step-by-step:
-
1Optical Diagnostic Check: Inspecting LED indicator lights, lens clarity, and beam line-of-sight.
-
2Low-Voltage Continuity Test: Meter testing bell wires back to the opener logic board for breaks or shorts.
-
3Laser Beam Optical Alignment: Aligning sending and receiving sensors and securing heavy anti-vibration brackets.
-
4UL 325 Safety Compliance Test: Placing 2x4 block in door path to confirm instant safety reversal.
Safety Sensor Repair & Alignment Specifications & Turnaround Guide
We provide transparent flat-rate quotes upon in-person inspection with zero hidden travel fees. Exact requirements depend on door dimensions, weight, and cycle rating.
| Service / Component Scope | Typical Turnaround | Warranty Protection | Estimate Policy |
|---|---|---|---|
| Photo-Eye Laser Realignment & Lens Cleaning | 30-45 Mins | 90-Day Alignment Warranty | Free In-Home Written Quote |
| Complete OEM Safety Sensor Replacement (Pair) | 30-45 Mins | 2-Year Parts & Labor | Free In-Home Written Quote |
| Low-Voltage Wiring Run Replacement & Securing | 45-60 Mins | 2-Year Workmanship | Free In-Home Written Quote |
| Anti-Vibration Heavy-Duty Track Bracket Upgrade | 30 Mins | Lifetime Bracket Warranty | Free In-Home Written Quote |
Specialized Work We Handle:
- Infrared Photo-Eye Optical Alignment
- Resolution of 10-Blink Opener Codes
- Low-Voltage Bell Wire Continuity Testing
- Anti-Vibration Heavy Track Mounting Brackets
- Direct Sunlight Blind Spot Solutions
- UL 325 Auto-Reverse Compliance Certification
Why Choose A Plus Garage Door for Safety Sensor Repair & Alignment?
Precision Laser Alignment for LiftMaster, Chamberlain & Genie
Fast same-day response across Windsor, Essex County & Chatham-Kent with fully stocked service trucks.
Immediate Resolution of 10-Blink Opener Codes
Factory-trained and certified overhead door technicians with comprehensive liability and WSIB coverage.
Low-Voltage Continuity Testing for Hidden Broken Wires
We use heavy-duty high-cycle commercial grade replacement parts engineered to last for decades.
Anti-Vibration Heavy-Duty Sensor Track Brackets
Clear written estimates before any work begins, with zero hidden charges or surprise travel fees.
We Provide Safety Sensor Repair & Alignment In These Ontario Communities:
Our emergency mobile service trucks are dispatched daily across Windsor-Essex and Chatham-Kent. Select your town to view local dispatch details:
SERVICE DEPLOYMENT WORKFLOW
What you can expect when you hire A Plus Garage Door for your safety sensor repair & alignment needs.
LED Diagnostic Check
We check the sending (amber) and receiving (green) sensor LED indicator lights.
Wiring Continuity Test
We test low-voltage bell wire circuits for staples pinching wires, cuts, or corrosion.
Precision Optical Alignment
We adjust sensor brackets using laser levels to ensure a steady infrared beam.
Obstruction & UL 325 Certification
We perform mandatory obstruction tests to guarantee the door reverses upon beam interruption.
Safety Sensor Repair & Alignment Frequently Asked Questions
Common questions about our safety sensor repair & alignment service in Windsor and Essex County, ON.
An overhead opener light flashing 10 times is the universal diagnostic code indicating that the safety photo-eyes are either misaligned, blocked by an obstruction, blinded by direct sunlight, or experiencing a broken sensor wire.
Holding down the interior wall control button overrides the safety sensors as a manual emergency feature. If your door operates only while holding this button, your photo-eyes are not functioning.
Yes, direct morning or evening sunlight shining directly into the receiving sensor lens can wash out the infrared beam, tricking the opener into sensing an obstacle. We install sun-shield hoods and anti-glare brackets to resolve sunlight blind spots.
On most LiftMaster and Chamberlain systems, the sending sensor has a steady amber/yellow LED and the receiving sensor has a steady green LED. If the green light is flickering or off, the sensors are out of alignment.
